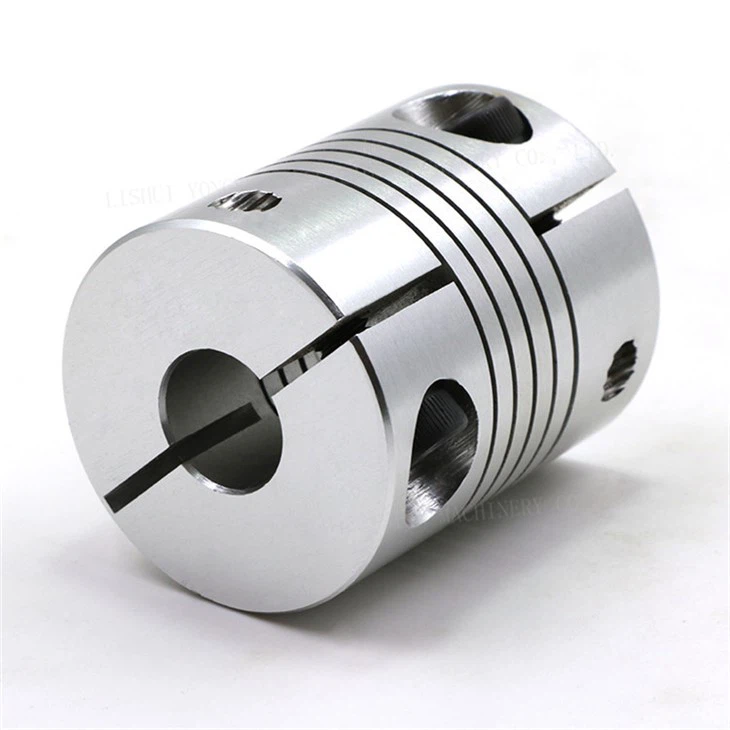

GIC Parallel Kab Clamping Coupling Series distinguishes nws tus kheej raws li ib tug heev tshwj xeeb, ib tug - tej yam khoom rau meej, lub teeb - mus rau - nruab nrab lub luag hauj lwm motion control. Tsis zoo li cov rooj sib txoos ua ke ob-cov khoom sib dhos, GIC yog ua tiav los ntawm ib qho thaiv ntawm siab -lub zog aluminium alloy, lav qhov muaj pes tsawg leeg- rov qab sib kis.

Mechanical Innovation (Slit-Type Flexure):

Lub coupling qhov yooj yog ua tiav los ntawm kev ua tau zoo tshaj -machining. Ntau qhov sib npaug sib npaug yog cov txheej txheem txiav raws li lub cev, ua kom hloov tau yooj yim "beams" lossis nplooj springs. Qhov kev tsim monolithic no tso cai rau kev sib txuas rau:

• Kev them nyiaj rau tag nrho peb lub ntsej muag misalignments (angular, parallel, thiab axial) tsis hnav.
• Ua kom siab torsional nruj kom raug synchronization.

Tus cwj pwm los ntawm nws qhov kev sib koom ua ke clamp hub, GIC Series muab lub zog clamping zoo dua thiab kev ua haujlwm ncaj ncees. Nws yog qhov kev xaiv tseem ceeb tshaj plaws rau kev sib txuas siab - teb stepper thiab servo motors rau rhiab precision khoom xws li encoders thiab lub teeb -load lead screws, qhov kev ncaj ncees ntawm xoom-backlash, ib qho -daim txuas yog qhov tseem ceeb.

Cov Cai Ua Haujlwm

GIC Parallel Kab Clamping Coupling ua haujlwm ntawm lub hauv paus ntsiab lus ntawm cov khoom siv flexural ua ke ncaj qha hauv cov qauv nruj. Nws txoj haujlwm yog tag nrho cov neeg kho tshuab, tso siab rau cov geometry sophisticated ntawm nws ib leeg -daim qauv tsim kom ua tiav ob lub hom phiaj tsis sib haum xeeb: qhov torsional rigidity thiab saj zawg zog geometric them nyiaj.

1. Torsional Rigidity thiab Torque Transmission
Txij li thaum lub coupling yog machined los ntawm ib qho thaiv ntawm aluminium alloy, muaj pes tsawg lub hauv paus txav los yog mechanical interfaces -guaranteeing zero backlash. Thaum lub cev muaj zog rotates, cov khoom siv lub zog shear kom ntseeg tau tias qhov sib npaug "beams" hloov lub torque tam sim ntawd. Tus tsim yog optimized rau siab torsional txhav, txhais tau hais tias lub coupling yuav tsis "cua" nyob rau hauv load, yog li tuav ib tug zoo meej, synchronized kev sib raug zoo ntawm lub cev muaj zog thiab lub zog tivthaiv.

2. Misalignment Compensation (Lub Flexural Element)
Parallel slits yog tus yuam sij rau nws yooj yim. Los ntawm kev tsim cov "kab kab" nyias nyias los yog nplooj hlav ntawm cov slits, lub coupling tso cai rau ob lub hub -kawg yuav tsum tau tsiv mus nyob rau ib leeg.
Parallel & Angular Misalignment: Cov kab teeb flex nyob rau hauv lub cantilever zam, khoov kom nqus cov offset.
Axial Misalignment: Cov kab teeb nthuav dav lossis compress raws cov axis.
Qhov no tswj elastic deformation zoo absorbs geometric yuam kev yam tsis muaj inducing teeb meem sab loads (tshem tawm rog) ntawm cov kev cob cog rua lub cev muaj zog thiab load bearings.

3. Clamping Integrity (Integrated Hub Mechanism)
Qhov kev ua tau zoo yog anchored los ntawm Integrated Clamp Hub. Los ntawm nruj ib leeg ntsia hlau, muaj zog hoop kev nyuaj siab yog generated nyob ib ncig ntawm lub ncej. Qhov no tsim kom muaj qhov siab - kev sib txhuam, kev tuav tsis sib xws uas tshem tawm txhua qhov micro- txav los yog ua si ntawm qhov sib txuas ntawm qhov sib txuas thiab cov ncej. Qhov kev ruaj ntseg, xoom-backlash clamping txoj kev no yog qhov tseem ceeb rau kev tswj xyuas qhov tseeb ntawm kev ua haujlwm zoo.
